Nabtesco Cycloidal Gearbox Reducer Rv-20E , Cyclo Drive Speed Reducer Small Size Large Deceleration Ratio​

Cycloidal Gear Reducer as one of the core technology of robot, the cost occupies about 40% of the whole robot, our RV gearbox small size, large deceleration ratio, low working inertia, small noise, high torsion rigidity, high impact load capacity (can withstand 5 times the rated torque), high working accuracy (tooth gap less than 1arcmin), long service life. We have the most perfect RV reducer comprehensive performance test platform, which can quickly and effectively measure the RV gearbox tooth gap accuracy, transmission accuracy, efficiency, noise, stiffness, vibration and other properties.

The production of Cycloidal Gear Reducer must go through the gear gap accuracy, noise and stiffness detection, in line with enterprise standards of products can be delivered.

Noise & lifetime

1. The gear unit is operated at rated speed with a noise of < 75 dB.
2. The noise level is related to installation accuracy, lubrication, temperature, load and other factors.
3. The reducer operates at rated conditions with a life of > 6000 hours.
4. It is not advisable to operate for longer than the rated speed or rated torque, otherwise the life will be reduced.
5. In order to ensure the accuracy and longevity of the reducer, please change the grease after every 2000 hours of operation.

Features of Cycloidal Gearbox Reducer

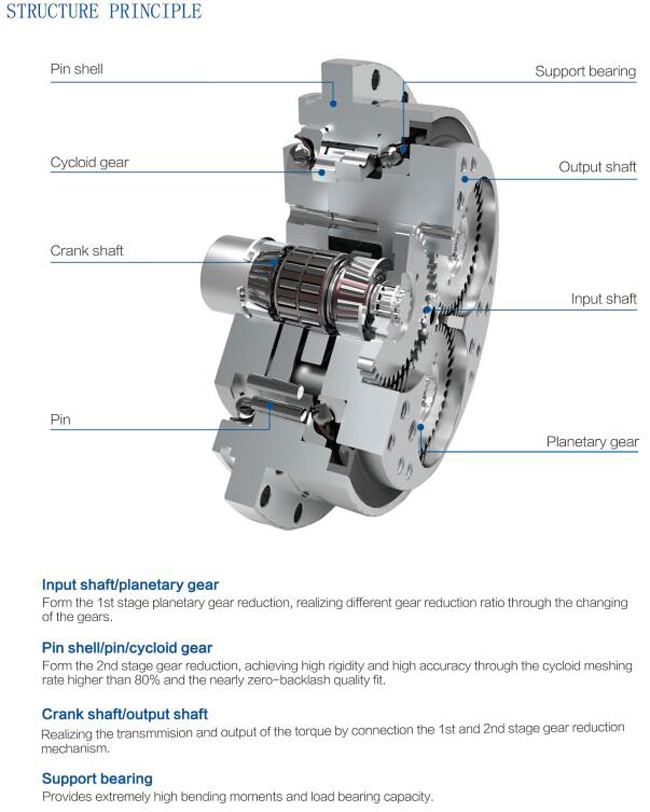

Less than 1 arc - min Backlash, strong impact resistance, very compact with high torsional rigidity, component in - line version for greater design and space saving flexibility, large transmission ratio range, high transmission efficiency and long working life.

Cycloidal Gearbox Reducer RV-20E technical Parameters

Operating parameter

Note: the rated torque is the output torque when the output speed is at 15r/min.


Performance Parameter

Cycloidal Gearbox Reducer RV-20E installation parameter

Warranty service of Cycloidal Gearbox Reducer

We provide one year quality warranty for our ZKRV series of gear reducers provided that they are used under rated conditions, assembled properly or applied under good lubrications. During this warranty period, refund or free replacement is guaranteed by our company when the performance of the gear reducer is severely downgraded or malfunctioned, however, we will not be responsible for the other costs arisen hereof.
The following situations are exempted from our warranty scope while paid service is available.

• The gear reducer is not used based on given conditions
• Foreign objects enter into the gear reducer
• The specification of the lubrication and supporting material used does not meet with given conditions
• Disassemble or reassemble the gear reducer without authorization

Cycloidal Gearbox Reducer RV-20E installation drawings

    Shanghai Genius Industrial Co.,Ltd is the branch of Nantong Zhenkang Machinery Co.,Ltd, which founded in 1993, with 30 years of experience in the production of CO2 welding wire feeder, nowadays we occupy 70% Chinese market and 50% global market for wire feeder, long partners of PANASONIC and OTC Daihen.

    In 2009, we started R&D high precison RV reduction gearbox, this is core part of industrial robots, through 4 years research and development, in 2013, our high precision RV reduction gearbox start bulk production. Nowadays we become China biggest RV reduction gearbox manufacturer, realized robotic automatically produce RV reduction gearbox, also we are supplier of world famous company ABB, FNUC, YASKAWA for gearbox.

    As had advantage of wire feeder and RV gear reducer, with accumulated years of welding experience, we decide to R&D welding robot, After more than one year testing, our welding robot developed successfully in 2016, much earlier than other robot manufacturers in China, now our robot already in market for 5 years, still work well, got good comments from customers.

Genius Zhenkang Company Comprehensive Strength

* Genius Zhenkang occupies an area of 32,000 square meters, with a plant area of 25,000 square meters.
* 72 senior technical engineers , 42 R&D technical engineers.
* Has more than 200 sets of advanced manufacturing equipments and testing
   instruments, CNC machine tools, slow wire cutting machines and other equipments.
* Total assets reach to USD 14,200,000.
* Strict quality assurance system, ISO9001 and ISO14001 system certifications, complete testing means.
* Carry out production numerical control, assembly intelligence, office automation,
   advanced ERP management, first-class production site.
