    Integrated RV Reduction Gear RV-C Full Model Repace Nabtesco Reducer

    Ask Lasest Price
    Brand Name : Genius Robotics Zhenkang
    Model Number : RV-10C
    Certification : CE , ISO9001 , ISO14001
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 5000 / month
    Delivery Time : 5-10 Working days
    • Product Details
    • Company Profile

    Integrated RV Reduction Gear RV-C Full Model Repace Nabtesco Reducer

    Integrated RV Reduction Gear RV-C, Full Model Repace Nabtesco Reducer


    RV reduction gear introducer


    There are three main core technologies in robot manufacturing: the first is the RV precision reducer; the second is the precision motor (precision electronics); the third core component is the drive. RV reducer is the most rigid low - vibration reducer in industrial robots (mainly spraying, spot welding, arc welding, handling and assembly robots). It is very beneficial to improve the motion accuracy and dynamic characteristics of industrial robots. It is also the core component of industrial robot transmission.


    As one of the core technologies of the robot, the RV precision reducer accounts for about 40% of the total robot. Nantong Zhenkang was founded in 1993. It started with the wire feeder of electric welding machine. It is a manufacturer that has been involved in RV reducer for robots earlier in China. We currently has RV-E series 20E, 40E. , 80E, 110E, 160E, 320E, 450E and C series 10C, 27C, 50C, 100C, 120C, 200C, 320C, 320CA.


    RV reducer has small volume, large reduction ratio, low working inertia, low noise, high torsional rigidity, high impact load resistance (can withstand 5 times rated torque), high working precision (backlash less than 1arcmin) and long service life. The technical level is domestically leading and internationally advanced.


    ABB is also our customer, ABB has purchased the Zhenkang RV-50C products in batches for automated production lines, and has accumulated no more than 15 months of performance problems.


    Working principle of RV reduction gear


    The RV drive is a new type of transmission developed on the basis of cycloidal pinwheel drives, the RV reducer consists of an involute cylindrical gear planetary reduction mechanism and a cycloidal pinion planetary reduction mechanism. The involute planetary gear is integrated with the crankshaft as an input to the cycloidal pinion drive section.The crankshaft drives the cycloidal wheel for eccentric motion.The crank rotates clockwise clockwise for 1 week and the cycloidal wheel moves 1 tooth counterclockwise.The core components of the RV reducer are the pin housing, the crank shaft and the cycloidal wheel.


    RV reduction gear application


    Industrial Robot Indexing mechanism

    SCARA Rotary table

    Positioning axis Elevator platform
    AGV Wind energy mechanism
    Machine tool Gantry

    Medical equipment Aeronautics



    RV reduction gear RV-10C -27 technical Parameters



    Operating parameter

    Output Rotational speed
    r/min
    5152535
    Output torqueInput capacityOutput torqueInput capacityOutput torqueInput capacityOutput torqueInput capacity
    ModelNmkWNmkWNmkWNmkW
    10C1360.09980.21840.29760.38

    Note: the rated torque is the output torque when the output speed is at 15r/min.


    Performance Parameter

    ModelSpeed ratioAllowable output speedMaximum backlashAllowable acceleration/decleration torqueMomentary max allowable torqueAllowable momentMomentary max allowable movementWeightEfficiencyNoise
    10C

    Reduction gear unit

    Speed ratio value

    r/minarc.minNmNmNmNmkg%dB
    2780124549068013004.6>80<75



    RV gear reducer RV-10C -27 installation parameter


    inner hexagon bolt
    Nominal dimension(mm)
    fastening torque(Nm)fastening forcebolt requirement
    M8 × 1.2537.2 ± 1.8623960GB/T 70.1 - 2000
    intensity:12.9
    thread requirement:GB/T 1167-1996


    Warranty service of RV reduction gear


    We provide one year quality warranty for our ZKRV series of gear reducers provided that they are used under rated conditions, assembled properly or applied under good lubrications. During this warranty period, refund or free replacement is guaranteed by our company when the performance of the gear reducer is severely downgraded or malfunctioned, however, we will not be responsible for the other costs arisen hereof.


    The following situations are exempted from our warranty scope while paid service is available

    1. The gear reducer is not used based on given conditions
    2. Foreign objects enter into the gear reducer
    3. The specification of the lubrication and supporting material used does not meet with given conditions
    4. Disassemble or reassemble the gear reducer without authorization

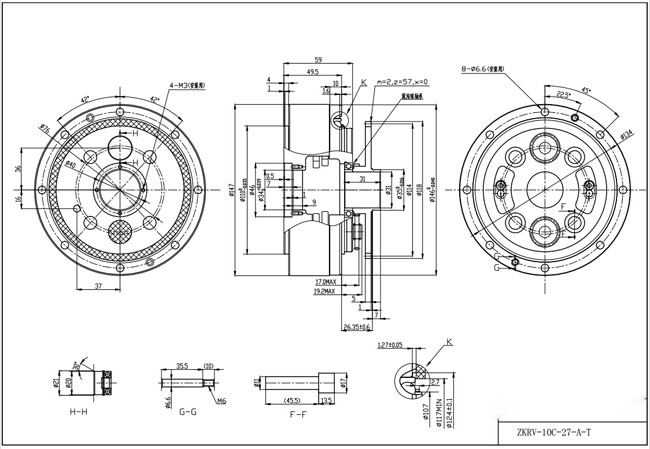

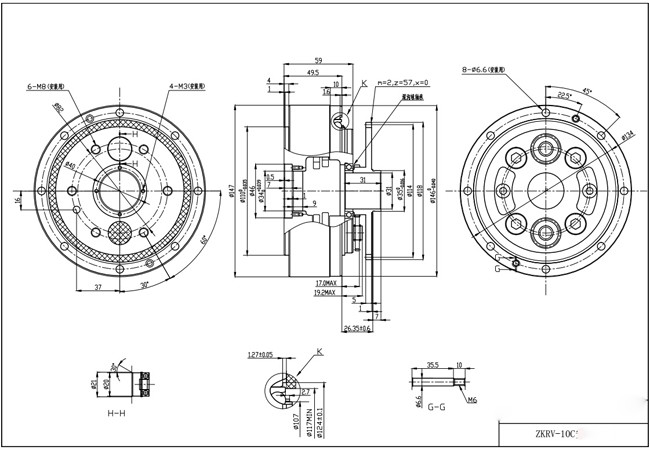

    RV reduction gear RV-10C -27 installation drawings
