High Torsional Stiffness RV Reduction Gear Minimal Abrasion, Same Qualtiy Nabtesco Reducer RV-50C

RV Reduction Gear important role

RV transmission is a brand - new transmission method. It is developed on the basis of the traditional oscillating planetary transmission. It not only overcomes the shortcomings of the general swaying transmission, but also has a small size, light weight, large transmission ratio range and long service life. A series of advantages such as stable accuracy, high efficiency and smooth transmission.

The presence of the rv reducer allows the servo motor to operate at a suitable speed and accurately reduces the speed to the speed required by various parts of the industrial robot, increasing the rigidity of the machine while outputting greater torque. Compared with universal reducers, industrial robot joint reducers require short drive chains, small size, high power, light weight and easy control.

At the same time, the rv reducer has much higher fatigue strength, stiffness and life than the harmonic drive commonly used in industrial robots, and the hysteresis accuracy is stable. Unlike the harmonic drive, the motion accuracy will be significantly reduced with the use of time. Therefore, many high - precision industrial robot transmissions in many countries in the world use RV reducers. Therefore, this kind of RV reducer has gradually replaced the development of harmonic reducers in advanced industrial robot transmission.

Nantong Zhenkang has successfully developed RV reducers for robots under 300 kg, with a total of 17 products.
E series RV-20E, RV-40E, RV-80E, RV-110E, RV-160E, RV-320E, RV-450E
C series RV-10C, RV-27C, RV-50C, RV-100C, RV-120C, RV-200C, RV-320C, RV-320CA.
And RD series RD-20E, RD-50C.

Features of RV Reduction Gear RV-50C -32.54

1. Less than 1 arc - min Backlash.
2. Strong impact resistance.
3. Very compact with high torsional rigidity.
4. Component in - line version for greater design and space saving flexibility.
5. Large transmission ratio range.
6. High transmission efficiency.
7. Long working life.

Application of RV Reduction Gear RV-50C -32.54

High - end intelligent equipment industry such as industrial robots, external shafts, precision machine tools, radars, and medical devices.

RV Reduction Gear RV-50C -32.54 technical Parameters

Operating parameter

Note: the rated torque is the output torque when the output speed is at 15r/min.


Performance Parameter

RV Reduction Gear RV-50C -32.54 installation parameter

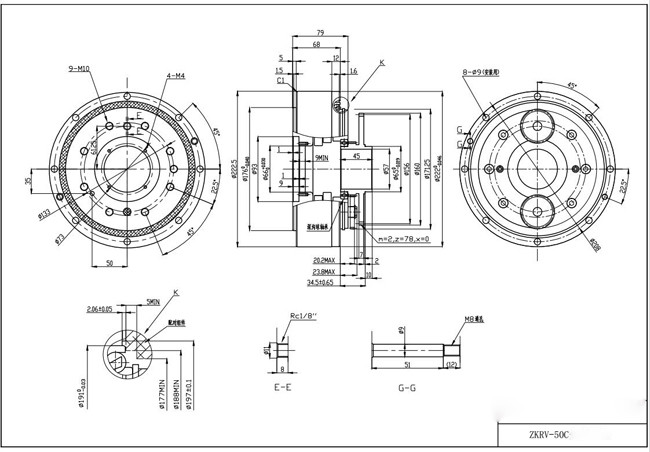

RV Reduction Gear RV-50C -32.54 installation drawings

    Shanghai Genius Industrial Co.,Ltd is the branch of Nantong Zhenkang Machinery Co.,Ltd, which founded in 1993, with 30 years of experience in the production of CO2 welding wire feeder, nowadays we occupy 70% Chinese market and 50% global market for wire feeder, long partners of PANASONIC and OTC Daihen.

    In 2009, we started R&D high precison RV reduction gearbox, this is core part of industrial robots, through 4 years research and development, in 2013, our high precision RV reduction gearbox start bulk production. Nowadays we become China biggest RV reduction gearbox manufacturer, realized robotic automatically produce RV reduction gearbox, also we are supplier of world famous company ABB, FNUC, YASKAWA for gearbox.

    As had advantage of wire feeder and RV gear reducer, with accumulated years of welding experience, we decide to R&D welding robot, After more than one year testing, our welding robot developed successfully in 2016, much earlier than other robot manufacturers in China, now our robot already in market for 5 years, still work well, got good comments from customers.

Genius Zhenkang Company Comprehensive Strength

* Genius Zhenkang occupies an area of 32,000 square meters, with a plant area of 25,000 square meters.
* 72 senior technical engineers , 42 R&D technical engineers.
* Has more than 200 sets of advanced manufacturing equipments and testing
   instruments, CNC machine tools, slow wire cutting machines and other equipments.
* Total assets reach to USD 14,200,000.
* Strict quality assurance system, ISO9001 and ISO14001 system certifications, complete testing means.
* Carry out production numerical control, assembly intelligence, office automation,
   advanced ERP management, first-class production site.
