    6 Axis MIG Welding Robot , Arm Length 1400mm For Steel Structure

    Ask Lasest Price
    Brand Name : Genius Robotics Zhenkang
    Model Number : ZK1400-06
    Certification : CE , ISO9001 , ISO14001
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 500/Month
    Delivery Time : 7 - 10 Working days
    • Product Details
    • Company Profile

    6 Axis MIG Welding Robot , Arm Length 1400mm For Steel Structure

    6 Axis MIG Welding Robot , Electric Welding Machine For Steel Structure

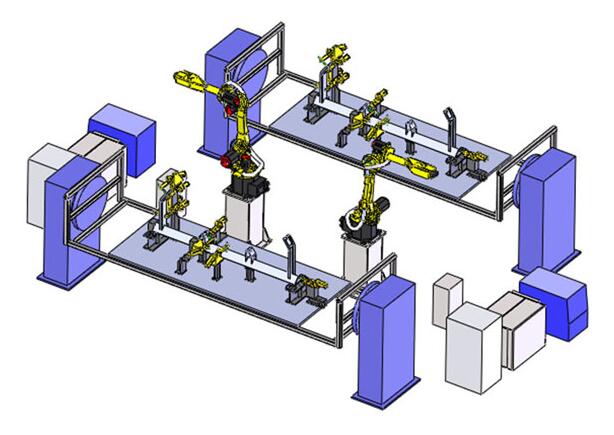

    Mig welding robot station description


    According to the requirements of the product, we design the robot that adopts six - axis robot system equipped with arc welder to complete the welding automatically. The robot uses cylinder or clamp and utilize the leverage principle to fix product. This method can meet the requirement for automatic welding and can guarantee that the robot could weld each part of the product. According to the production efficiency requirement, we design two sets of fixtures. One is used for loading the work piece, the other is used for welding.



    Mig welding robot station steps


    While the station 1 is being welded, station 2 is being loaded and fixed the work piece synchronously. Two stations work alternately.
    This machine can achieve automatic welding with manually loading material. It can also improve the welding quality and welding efficiency.
    What’s more, it can reduce the production cost. The problem of unstable quality and low production efficiency caused by pure manual operation has been solved.


    Control system functions


    Integrated drive and control, open control system, comprehensive compatibility.

    • Adapt to a variety of welding power
    • Restarting a weld / arc reignition
    • Arc breaking restart
    • Scratch start
    • Sticky wire detection
    • (2D 3D 4D seek) Starting point search
    • Multistation reservation.
    • Swing arc ( Positive arc, Triangular arc, circular arc ) .

    Robot body specification


    Robot modelZK1400-06
    ApplicationArc welding
    MountingVertical ground installation
    Number of axes6
    Payload6kg
    Max working radius1400mm
    Repeated posiontioning accuracy0.03mm
    Maximum joint rangeJ1RV reducer ±160°
    J2RV reducer +110°, -70°
    J3RV reducer +65°, -120°
    J4RV reducer ±150°
    J5Hollow harmonic reducer +105°, -110°
    J6Hollow harmonic reducer ±320°
    Maximum joint speedJ1RV reducer 201.9°/S
    J2RV reducer 198.3°/S
    J3RV reducer 198.3°/S
    J4RV reducer 296.2°/S
    J5Hollow harmonic reducer 197.5°/S
    J6Hollow harmonic reducer 247.2°/S
    Allowable bending moment N.mJ4RV reducer 9.8N.m
    J5RV reducer 9.8N.m
    J6Hollow harmonic reducer 4N.m
    Allowable inertia Kg.㎡J4RV reducer 0.3kg.㎡
    J5RV reducer 0.3kg.㎡
    J6Hollow harmonic reducer 0.05kg.㎡
    Body total weightKG185KG
    Operating environmentTemperature0℃-45℃
    Humidity20%-80%
    Others

    Keep away from corrosive gases or liquids or explosive gases,
    Keep away from water, oil, dust
    Keep away from source, magnetic field, high frequency signal source

    Power capacity6KVA (Robot) + 24KVA (Welding source)


    Package picture


    6 Axis MIG Welding Robot , Arm Length 1400mm For Steel Structure


    Advantages of our company


    Shanghai Genius Industrial Co.,Ltd is the overseas sales service center of Nantong Zhenkang Welding Electromechanical Company, which was established in 1993, have more than 20years of history in the welding industry.


    Our company professionally manufacture wire feeder, RV gear reducer and industrial robot, which is engaging in research and development, manufacture and sell.


    At present, our company occupies an area of 32,000 square meters, with a plant area of 25,000 square meters. It has 72 senior technicians, 42 technicians directly researching and developing, and total assets of 100 million CNY.


    Company has advanced and sophisticated manufacturing equipments and testing instruments, CNC machine tools, machining centers, slow wire cutting machines and other equipment more than 200 units; strict quality assurance system, complete testing means; has developed into production CNC, Intelligent assembly and office automation, have realized the advanced ERP management and first - class production site of modern enterprises. The strict ISO9001 and ISO14001 system certifications provide a powerful guarantee for the company to produce high - quality wire feeders, RV reducers and industrial robots.


    6 Axis MIG Welding Robot , Arm Length 1400mm For Steel Structure
