Customized Hot Sell CNC Welding Robot 6 Axis Automatic TIG Arc Welding Robot

TIG welding robot description

Robotic TIG welding, also known as Gas Tungsten Arc Welding (GTAW), is a commonly used, high - quality welding process.

In TIG welding, an arc is formed between a non - consumable tungsten electrode and the metal being welded. Gas is fed through the torch to shield the electrode and molten weld pool. If filler wire is used, it is added to the weld pool separately.

TIG welding has become a popular choice of welding processes when high quality, precision welding is required. By integrating TIG welding robots, our customers are able to cut down on human error and increase safety on their production line.

TIG Welding robot application

TIG welding is typically used for small parts where precision is required. It’s slower than MIG welding, but cleanup and maintenance is simpler. While TIG welding is usually preferred over MIG welding for small parts, TIG welding is versatile and can be used for a wide range of welding applications.

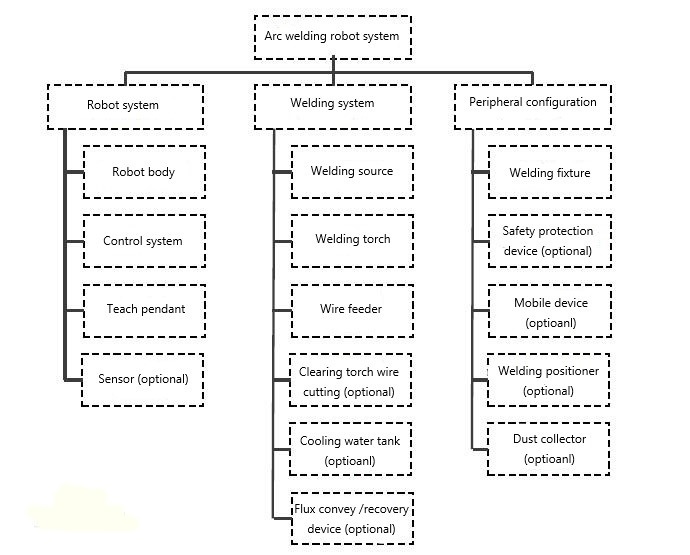

Arc welding robot composition

Welding robots mainly include two parts: robots and welding equipment.
The robot consists of a robot body and a control cabinet and a teach pendant.
The welding equipment ( for example, arc welding) consists of a welding power source, an automatic wire feeder device, and welding torch.

The system composition can also be selected according to the welding method and the welding process requirements of the workpiece. The following devices are selected: clear gun wire cutting device, cooling water tank, flux conveying and recovery device (SAW), mobile device, welding positioner, laser tracking sensor or camera sensor, dust removal device, etc.

Robot body specification

Industrial 6 axis robot motion range

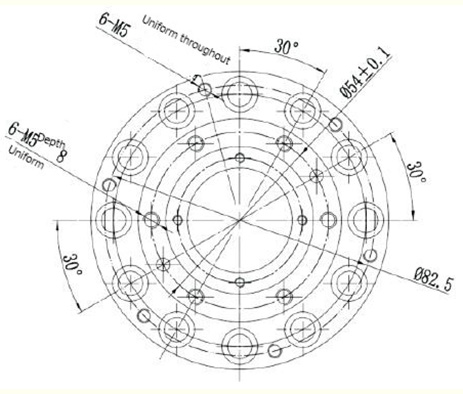

Installation dimensions of welding torch flange

Installation size of robot base

6 - Axis robot joint parts introduction

Welding effect

• The surface has no rust, no high height, the welding is full and the interface is firm.
• The welding is consistent and does not need to be polished or reduced by two - thirds.
• There are no pores, cracks, unfused, slag inclusions, welds, flying rafts, crater cracks, etc. on the surface.

Welding robot package

    Shanghai Genius Industrial Co.,Ltd is the branch of Nantong Zhenkang Machinery Co.,Ltd, which founded in 1993, with 30 years of experience in the production of CO2 welding wire feeder, nowadays we occupy 70% Chinese market and 50% global market for wire feeder, long partners of PANASONIC and OTC Daihen.

    In 2009, we started R&D high precison RV reduction gearbox, this is core part of industrial robots, through 4 years research and development, in 2013, our high precision RV reduction gearbox start bulk production. Nowadays we become China biggest RV reduction gearbox manufacturer, realized robotic automatically produce RV reduction gearbox, also we are supplier of world famous company ABB, FNUC, YASKAWA for gearbox.

    As had advantage of wire feeder and RV gear reducer, with accumulated years of welding experience, we decide to R&D welding robot, After more than one year testing, our welding robot developed successfully in 2016, much earlier than other robot manufacturers in China, now our robot already in market for 5 years, still work well, got good comments from customers.

Genius Zhenkang Company Comprehensive Strength

* Genius Zhenkang occupies an area of 32,000 square meters, with a plant area of 25,000 square meters.
* 72 senior technical engineers , 42 R&D technical engineers.
* Has more than 200 sets of advanced manufacturing equipments and testing
   instruments, CNC machine tools, slow wire cutting machines and other equipments.
* Total assets reach to USD 14,200,000.
* Strict quality assurance system, ISO9001 and ISO14001 system certifications, complete testing means.
* Carry out production numerical control, assembly intelligence, office automation,
   advanced ERP management, first-class production site.
