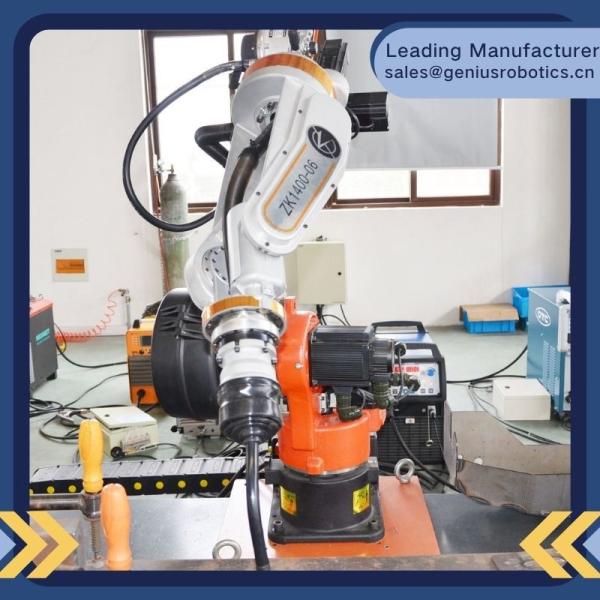

AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India

Shanghai Genius Industrial Co., Ltd
Contact Now
    Buy cheap AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India from wholesalers

    Buy cheap AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India from wholesalers
    • Buy cheap AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India from wholesalers

    AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India

    Ask Lasest Price
    Brand Name : Genius Robotics Zhenkang
    Model Number : ZK1400-06
    Certification : CE , ISO9001 , ISO14001
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 500/Month
    Delivery Time : 7 - 10 Working days
    • Product Details
    • Company Profile

    AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India

    AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India


    Aluminum welding robot programming skill


    1. Select a reasonable welding sequence. The welding sequence is determined by reducing the welding deformation and the length of the torch travel path.
    2. The space transition of the welding gun requires a short, smooth and safe moving track.
    3. Optimize welding parameters. In order to obtain the best welding parameters, the working specimens were produced for welding test and process evaluation.
    4. Reasonable position of the positioner, welding gun posture, position of the welding gun relative to the joint. After the workpiece is fixed on the positioner, if the weld is not the ideal position and angle, it is required to continuously adjust the positioner during programming so that the welded welds can reach the horizontal position one by one according to the welding sequence. At the same time, the position of each axis of the robot should be constantly adjusted. The position, angle and extension length of the welding gun relative to the joint are determined. After the position of the workpiece is determined, the position of the welding gun relative to the joint passes through the eyes of the programmer, observing is more difficult. This requires the programmer to be good at summing up the accumulated experience.
    5. Insert the clearing gun program in time. After writing a certain length of welding procedure, the cleaning gun program should be inserted in time to prevent the welding spatter from clogging the welding nozzle and the contact tip, ensure the cleaning of the welding torch, improve the life of the nozzle, ensure reliable arc ignition, reduce welding spatter.
    6. The preparation process is generally not in place. It is necessary to continuously check and modify the program during the robot welding process, adjust the welding parameters and the posture of the welding torch, etc., to form a good program. The wire feed is well formed, the capacity is large, no joints, saving time and materials, easy to store, high efficiency

    Aluminium welding robot advantage


    1. Reduce labor costs; If you are worried about how to saving the welder's cost, the welding station really is your need. After simple training, only a few people can complete the whole production process.
    2. Promoted the production ability; It could meet the large capacity, it has two welding station layout. It not only could improve efficiency to saving the cost but also saving the space for you.
    3. Precise welding, flexible layout; The layout is designed according to the customer's need. We can promise the quality of welded product.
    4. Best material, long service life; All the fixtures made of the best materials , according the specially treated. The service life at least longer 20% than other's in market.
    5. Replaced easily; Special design to easy replace the wear - resistant parts.


    Aluminum welding robot body specification

    Robot modelZK1400 - 06
    ApplicationArc welding
    MountingVertical ground installation, lifting, hanging
    Number of axes6
    Payload6kg
    Max working radius1400mm
    Repeated posiontioning accuracy0.03mm
    Maximum joint rangeJ1RV reducer ±160°
    J2RV reducer +110°, -70°
    J3RV reducer +65°, -120°
    J4RV reducer ±150°
    J5Hollow harmonic reducer +105°, -110°
    J6Hollow harmonic reducer ±320°
    Maximum joint speedJ1RV reducer 201.9°/S
    J2RV reducer 198.3°/S
    J3RV reducer 198.3°/S
    J4RV reducer 296.2°/S
    J5Hollow harmonic reducer 197.5°/S
    J6Hollow harmonic reducer 247.2°/S
    Allowable bending moment N.mJ4RV reducer 9.8N.m
    J5RV reducer 9.8N.m
    J6Hollow harmonic reducer 4N.m
    Allowable inertia Kg.㎡J4RV reducer 0.3kg.㎡
    J5RV reducer 0.3kg.㎡
    J6Hollow harmonic reducer 0.05kg.㎡
    Body total weightKG185KG
    Operating environmentTemperature0℃ - 45℃
    Humidity20% - 80%
    Others

    Keep away from corrosive gases or liquids or explosive gases,
    Keep away from water, oil, dust
    Keep away from source, magnetic field, high frequency signal source

    Power capacity6KVA (Robot) + 24KVA (Welding source

    Welding power source of aluminum welding robot


    It is suitable for localized digital welding power source, achieving low-splash welding effect. Can save labor hours such as weld grinding


    AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India


    About us


    Shanghai Genius Industrial Co.,Ltd is the overseas sales service center of Nantong Zhenkang Welding Electromechanical Company, which was established in 1993, have more than 20years of history in the welding industry.

    Our company professionally manufacture wire feeder, RV gear reducer and industrial robot, which is engaging in research and development, manufacture and sell.

    In 1993, Successfully developed the first wire feeding machine.

    In 1997, We developed printed motor service life exceeds the international level.

    In 2001, Successfully developed the first submerged arc welding car.

    In 2006, The only drafting unit of national standard for wire feeding device for welding.

    In 2009, Enter robot field, begin to develop RV reducer.

    In 2011, Vice President of welding machine branch and micromotor branch.

    In 2013, RV reducer is put on the market in batches.

    In 2015, Three major products (printing motor, wire feeder, submerged arc welding car) market share of the world's first.

    In 2016, Successfully developed the first high - precision welding robot, and successfully developed the first harmonic reducer.

    In 2017, New factory completed.


    Package of aluminum welding robot


    AC220V 60Hz Robotic Welding Equipment , Robotic Mig Welding Machine in India
