Shanghai Genius Industrial Co.,Ltd
7 Years
| Ask Lasest Price | |
| Brand Name : | Genius Robotics Zhenkang |
| Model Number : | RV-160E |
| Certification : | CE , ISO9001 , ISO14001 |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000 / month |
| Delivery Time : | 5-10 Working days |

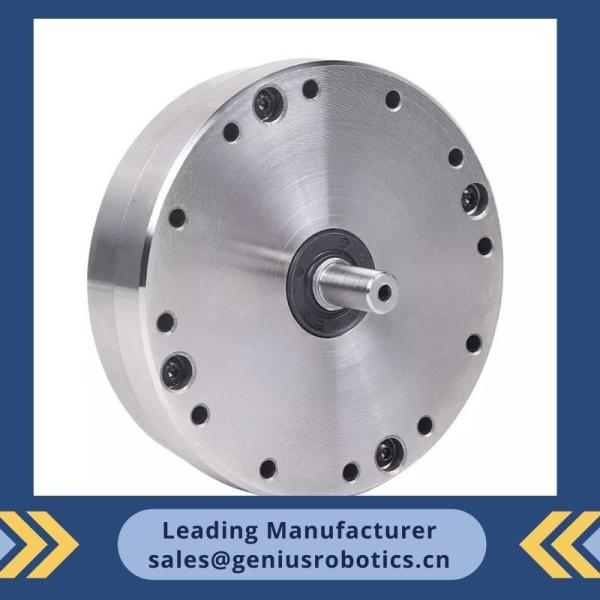

High Precision Cycloidal Industrial Robot Arm Joint Speed Gear box Reducer
160E famed provides a widest range of standard and customized solutions for applications in the fields of motion control and mechanical transmission . We supply precision inline planetary gearboxes and right angle planetary gearbox, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, robot-use RV reducers, grinding precicion rack & gears, servo motor, stepper motor, brushless motor, etc. And our group company also can offer worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. That means you can get what you want here and will get benefits from our one-stop service that your time and cost will be saved.
Feature
| 1 | Backlash is Less than 1 arc-min |
| 2 | Strong impact resistance |
| 3 | High Torsional Rigidity |
| 4 | Wide range of transmission ratio |
| 5 | 5.High Transmission Efficiency |
| 6 | Longer working lifespan |
RV-20E Working Parameters
Output rotate speed r/min Model | 5 | 15 | 25 | 35 | ||||
Output Torque | Input Power | Output Torque | Input Power | Output Torque | Input Power | Output Torque | Input Power | |
Nm | kW | Nm | kW | Nm | kW | Nm | kW | |
20E | 243 | 0.17 | 180 | 0.38 | 152 | 0.54 | 137 | 0.66 |
Note: The rated torque is the output torque when the output rotate speed is at 15r/min.
RV-20E Performance Parameters
Model | Speed Ratio | Allowable output speed | Maximum Backlash | Allowable acceleration/deceleration torque | Momentary max allowable torque | Allowable moment | Momentary max allowable movement | Weight | Efficiency | Noise | |
Shaft Rotate(R) | Housing Rotate | r/min | arc.min | Nm | Nm | Nm | Nm | kg | % | dB | |
20E | 81 | 80 | 75 | 1 | 450 | 900 | 880 | 1760 | 4.7 | >80 | <75 |
105 | 104 | ||||||||||
121 | 120 | ||||||||||
141 | 140 | ||||||||||
161 | 160 | ||||||||||
RV-20E Installation Parameters
Inner hexagon bolt Nominal dimension x pitch(mm) | Fastening Torque(Nm) | Fastening Force(N) | Bolt Requirement |
M6 ×1.0 | 15.6±0.78 | 13180 | GB/T 70.1-2000 Intensity class:12.9 Thread requirement: GB/T 1167-1996 |
M10×1.5 | 73.5±3.43 | 38080 |
ATTRACTIVE PRICE WITH TOP BRAND QUALITY
As a manufacturer type of sales company, 3F provide customers with very attractive price with premium quality. Compared with gearboxes from other company, 3F precision planetary gearbox are with features of lower backlash (2-8 arcmin), higher efficiency (≥95%) and lower noise (60dBA). And all servo gearboxes produced by 3F famed will be inspected and tested strictly before they leave the factory. Besides, one-year’s warranty and life long after-sales service is offered to our customers.
FAST DELIVERY TIME
For most of standard speed reducers, we have sufficient stock and can delivery to the customer in very short time to solve the problem of urgent replacement of the broken gearbox on the working machine, which can save the cost for the customer. In addition, if customer need some size of gearbox very urgently and we don’t have goods in stock, we can arrange priority production for you specially.
ALTERNATIVES TO BRAND SPEED REDUCERS
Most of our precision gearboxes can perfectly match and replace the
equivalent product models of Apex gearbox, Liming gearbox,
Shimpo gearbox, Neugart gearbox, SPG gearbox, Harmonic drive
gearbox, Boston gearbox, Bonfiglioli gearbox, etc. With high
quality
and good price, 3F speed reducers especially planetary gearboxes
and harmonic drive gears are warmly welcomed by customers all
over the world.
|
|
